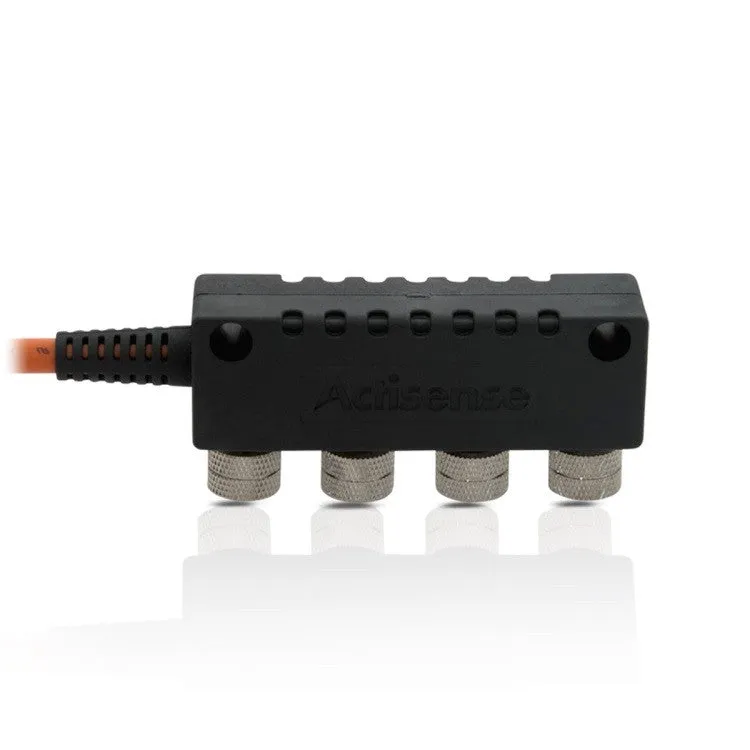

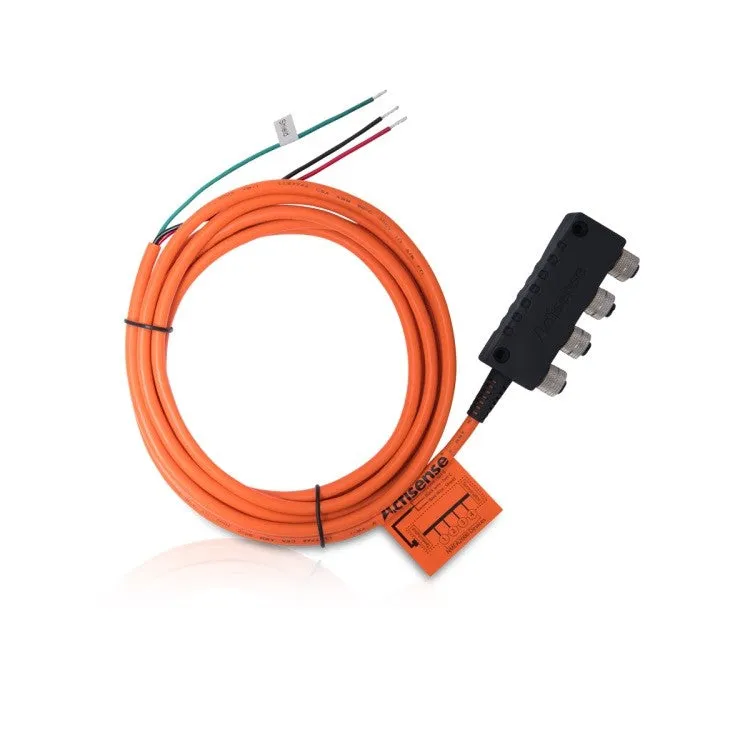

A complete NMEA 2000® backbone in a single device. Installing small NMEA 2000 networks is quicker and easier than it’s ever been with the Small Boat Network (SBN) from Actisense.
You can have up to 4 NMEA 2000 devices connected.

Technical Specification
Electrical
Rated Current: 3 A
Rated Voltage: 60 V (AC/DC)
Rated Voltage: 2 * 121 Ω ± 1% 250mW

Mechanical
Female Contact: Phosphor bronze, gold plated
Contact Carrier: PBT, black
Contact Polarisation: Standard M12 -“A”- polarisation
Mating Thread: M12
Screw Cap: Brass, nickel plated
O-Ring Seal: Rubber
Housing: TPU, flame retardant to UL94V-0, Halogen Free
Cable Jacket Material: 0.8mm Nom. PVC, orange
Cable Outer Diameter: 6.8mm
Cable Length: 3m
Wire Length: 140mm (mm stripped)
Wire Jacket: PVC
Wires: 16 AWG (stripped and tinned)
Drain: 3m
Cable Shield: 3m
Weight: 105g

Approvals and Certifications
NMEA 2000 Approved
RoHS Compliant
Protection: IP67 (when mated)
Operating Temperature: -20°C to 70°C
Storage Temperature: -40°C to 85°C
UL Certified (E129757)
